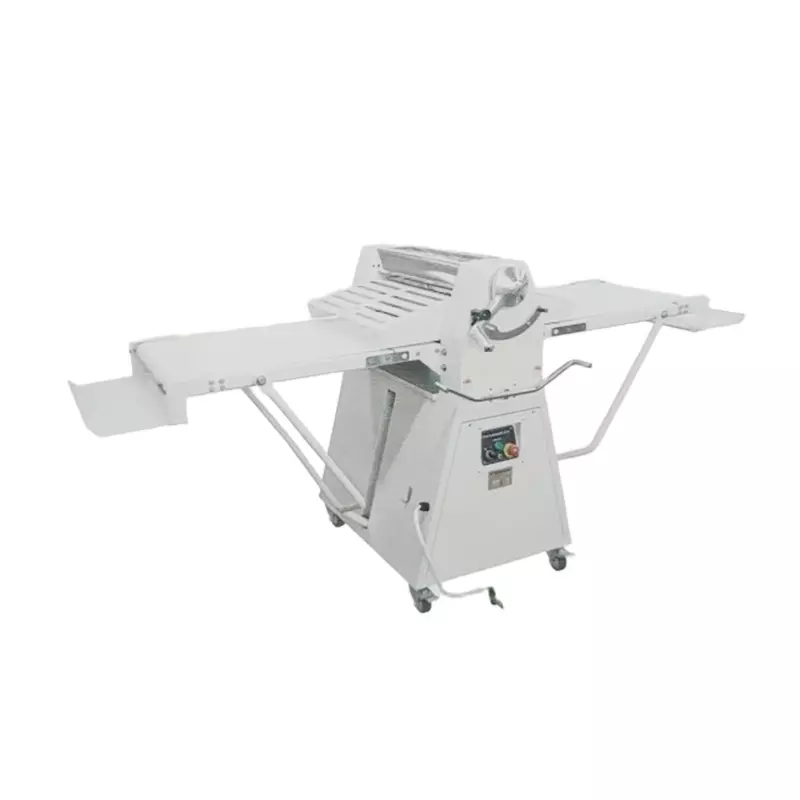

ZE-DSE52 1 HP Dough Sheeter
MOQ: 1 Pieces
Delivery time: 15 Day
All the great features and reliability of our standard series dough sheeter. Quality ETL, CE certified electric components and motor with added H.P. Easier roller adjustments with integrated lock on handle, locking safety guards. Front mounted, upgraded control panel with integrated power status light. Extra heavy duty table stabilizers for quieter operation.
Retractable dual catch pans are standard, even on bench models. No production holdups with sync drive (output conveyor is faster than input). Integrated roller guides on each table keeps the coveyor belts from slipping. Enamel finish is treated to resist rust, scratches and dents. Easy-to-clean surfaces featuring enamel and extra heavy gauge steel.
Social Connect:
Products
Latest News
Product Details
Dimensions and Weights
| Model | Overall Dimensions | Net Weight |
| AE-DSE45B | 70.9" L x 31.9" W x 23.6" H | 261lbs |
| AE-DSE52B | 70.9"Lx 35.8"W x 23.6" H | 274 lbs |
| AE-DSE52 | 82.7"Lx35.8" Wx44.5"H | 388 lbs |
| AE-DSE65 | 98.4"Lx 39.8" W x 48.0" H | 477 lbs |
| AE-DSE65L | 118.1”Lx 39.8" Wx48.0"H | 552 lbs |
Specifications
| Model | Motor | VoltageV/HZ/PH | AdjustableThickness | Max Dough Batch | Working Surface | Safety Guard | Foot Pedals |
| AE-DSE45B | 1/2HP | 220/60/1 | .04"to 1.18”(1 to 30mm) | 8.2 lbs (4kg) | 17.7”x67"(45cmx170cm) | Yes | No |
| AE-DSE52B | 1/2 HP | 220/60/1 | .04"to 1.18”(1 to 30mm) | 12.1 lbs (5.5kg) | 20.5”x67”(52cmx170cm) | Yes | No |
| AE-DSE52 | 1 HP | 220/60/1 | .01"to 1.18”(1-30mm) | 12.1 lbs (5.5kg) | 20.5”x82.7”(52cm x210cm) | Yes | No |
| AE-DSE65 | 1 HP | 220/60/1 | .01"to 1.18”(1-30mm) | 15.4 lbs (7kg) | 25.6”x98.4"(65cm x250cm) | Yes | No |
| AE-DSE65L | 1 HP | 220/60/1 | .01"to 1.18”(1-30mm) | 15.4 lbs (7kg) | 25.6”x118.1"(65cmx300cm) | Yes | No |
Previous: ZE-DS52B 1/2 HP Dough Sheeter
